About this item:
Capacity: 100Ah
Battery Material:Lithium Iron Phosphate(LiFePO4)
Nominal voltage: 12V
Max Protection Voltage: 14.6V
End Voltage: 10V
Instantaneous discharge current:≥2C
Continuous discharge current:≥1C
Size:352*174*190mm
Weight: 10KG
Certificate: CE ROHS MSDS UN38.3
Upgrade Parts/Accessories: Grade A
Voltage Protection Board(BMS): Yes
Cycles Life: 2000 Cycles-100% 6000 Cycles-70%
Max Charge Current: 0.5C
Workingtemperature : -20 ~ 60 ℃
Charge temperature: 0-45℃
Warranty: 2years
Parcel includes:
1, 1*LiFePO4 Battery
2, 1* Specialized Charger
3, 1* Product Manual
(About charging: The red indicator light indicates that the charging is in progress, and the green indicator light indicates that the charging is completed.)
Note: About series/parallel connection
Series: 12V 100Ah LiFePO4 battery support connections up to 5 indentical batteries in series Parallel connection: Unlimited number of parallel connections
Used For:
Solar Panel Power Bank System, Solar VRLA 12V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Motorcycle ATV Engine Starts)

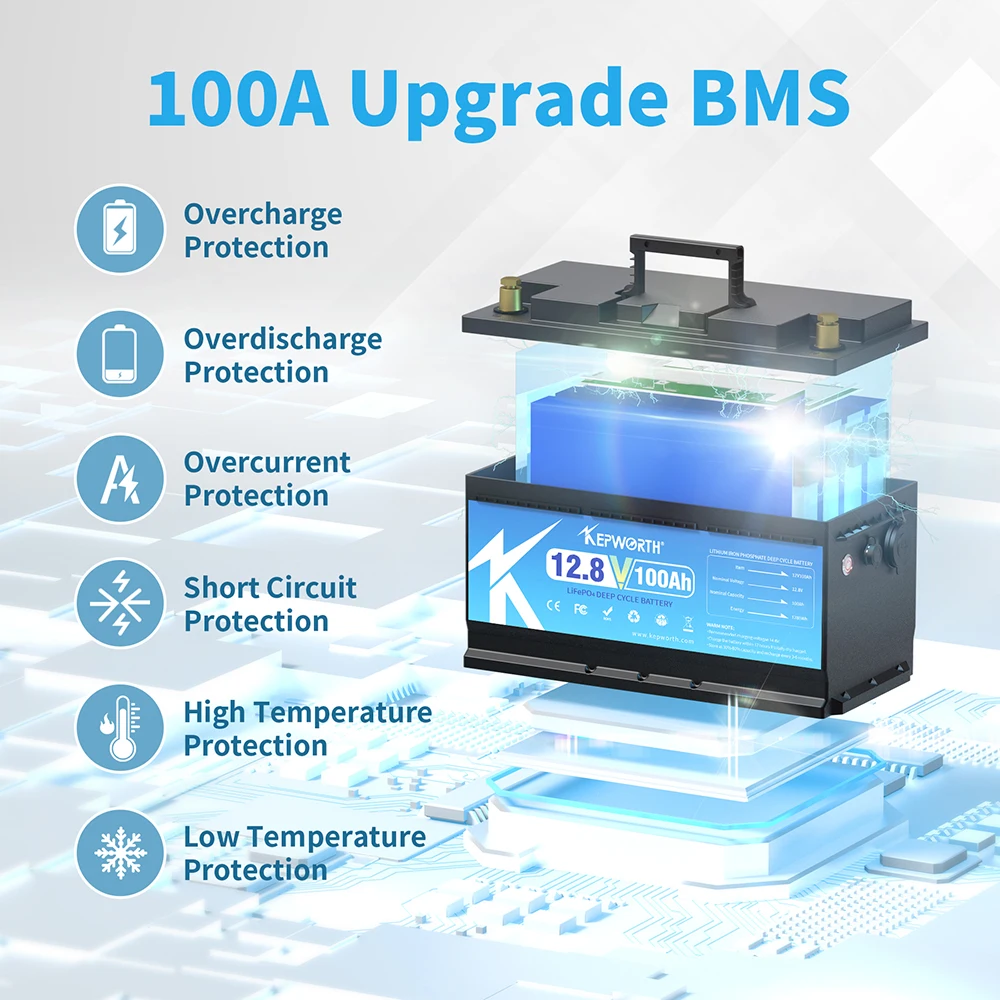

About BMS:
100Ah built-in 100A BMS Protection
Overcharge Protection
Overdischarge Protection
Overcurrent Overcurrent
Short Circuit Protection
High Temperature Protection
Low Temperature Protection
BMS can protect the battery well from damage. In addition, the Lifepo4 battery has no memory function and can be recharged at any time. Compared to lead-acid batteries, Lifepo4 batteries are extremely safe and cannot explode or burn. They can be installed and used directly.
Advantages:
It has excellent safety performance and high efficiency and stability woking performance than traditional Lead acid battery.
Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).
Built in BMS: BMS stands for “Battery Management System” – the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.
Lithium ion Technology: Unlike Lead Acid batteries, Battle Born’s deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective. When factoring time and cost into your purchase, our lithium ion battery banks come out ahead every time. Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.
Green Energy Battery: Made from 100% safe, nontoxic, renewable energy, Battle Born Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.
